Proper Copy-Pasting of Disconnected Links in GoJS
-
Problem

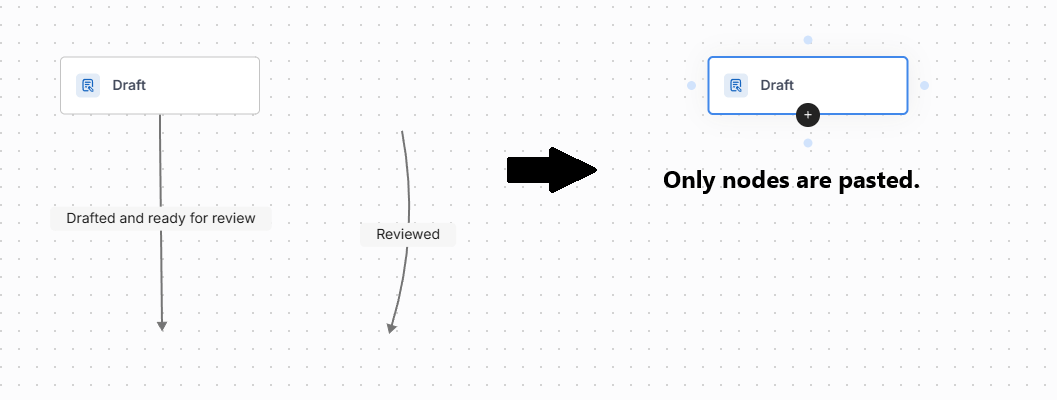

In GoJS, when we try to perform a copy-paste operation on partially or fully disconnected links, they are not pasted onto the diagram.
Solution
To enable pasting of such links, set the property:
diagram.toolManager.draggingTool.dragsLink = true;
This property allows links to be dragged, which may not be desirable in the project. To ensure that only copy/paste works, simply add the following code in the CommandHandler:
override pasteFromClipboard(): go.Set<go.Part> { const oldDragsLink = this.diagram.toolManager.draggingTool.dragsLink; this.diagram.toolManager.draggingTool.dragsLink = true; const pastedParts = super.pasteFromClipboard(); this.diagram.toolManager.draggingTool.dragsLink = oldDragsLink; }

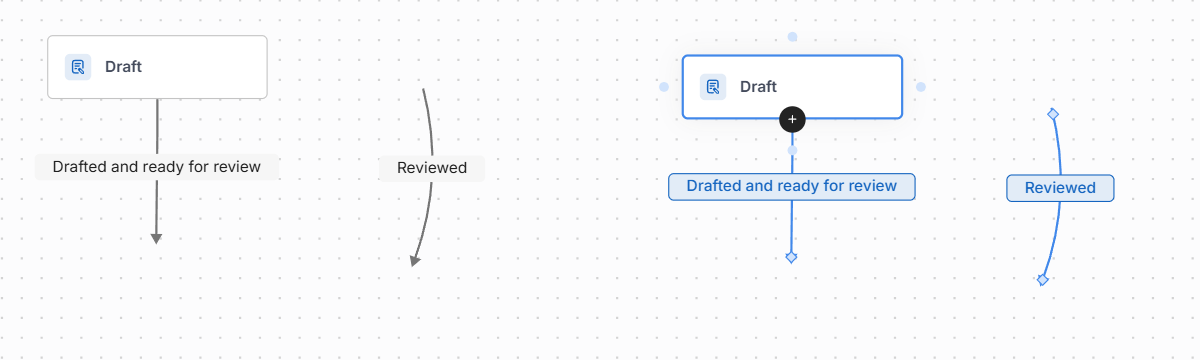

After overriding this method, both partially and fully disconnected links should be correctly pasted onto the diagram.
